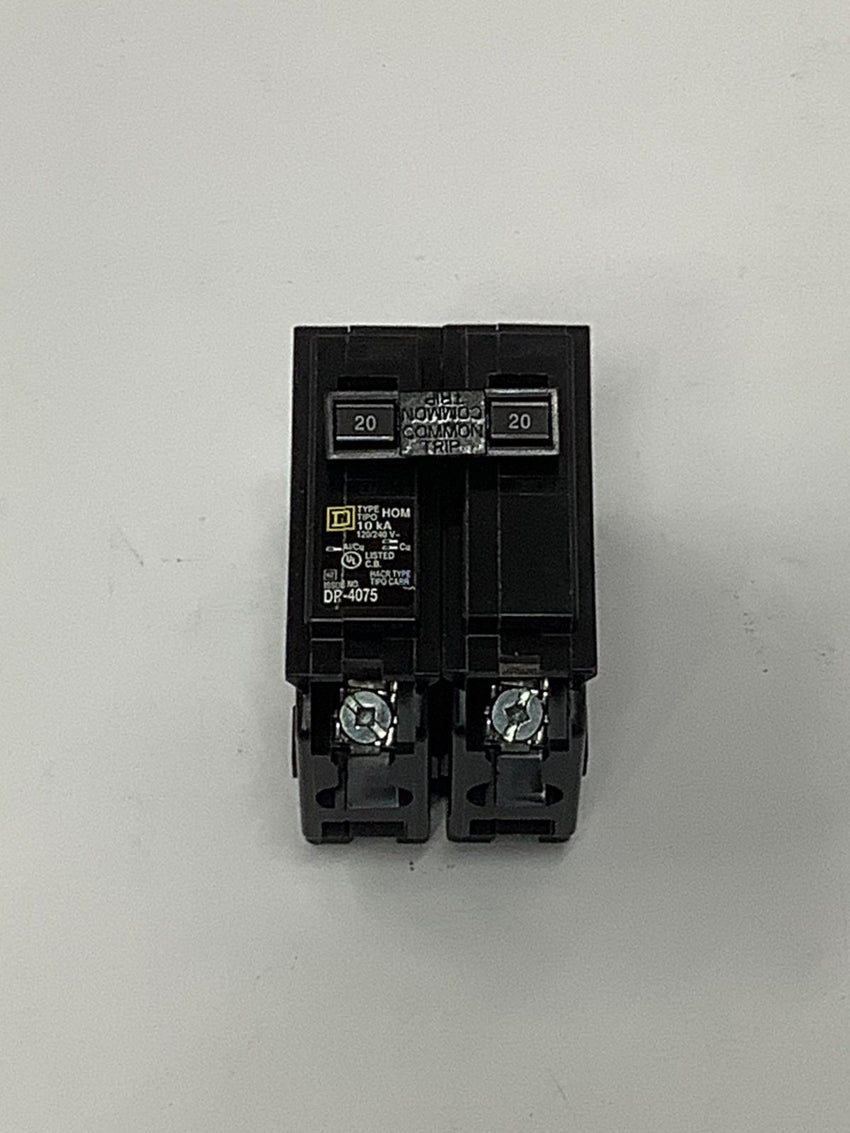

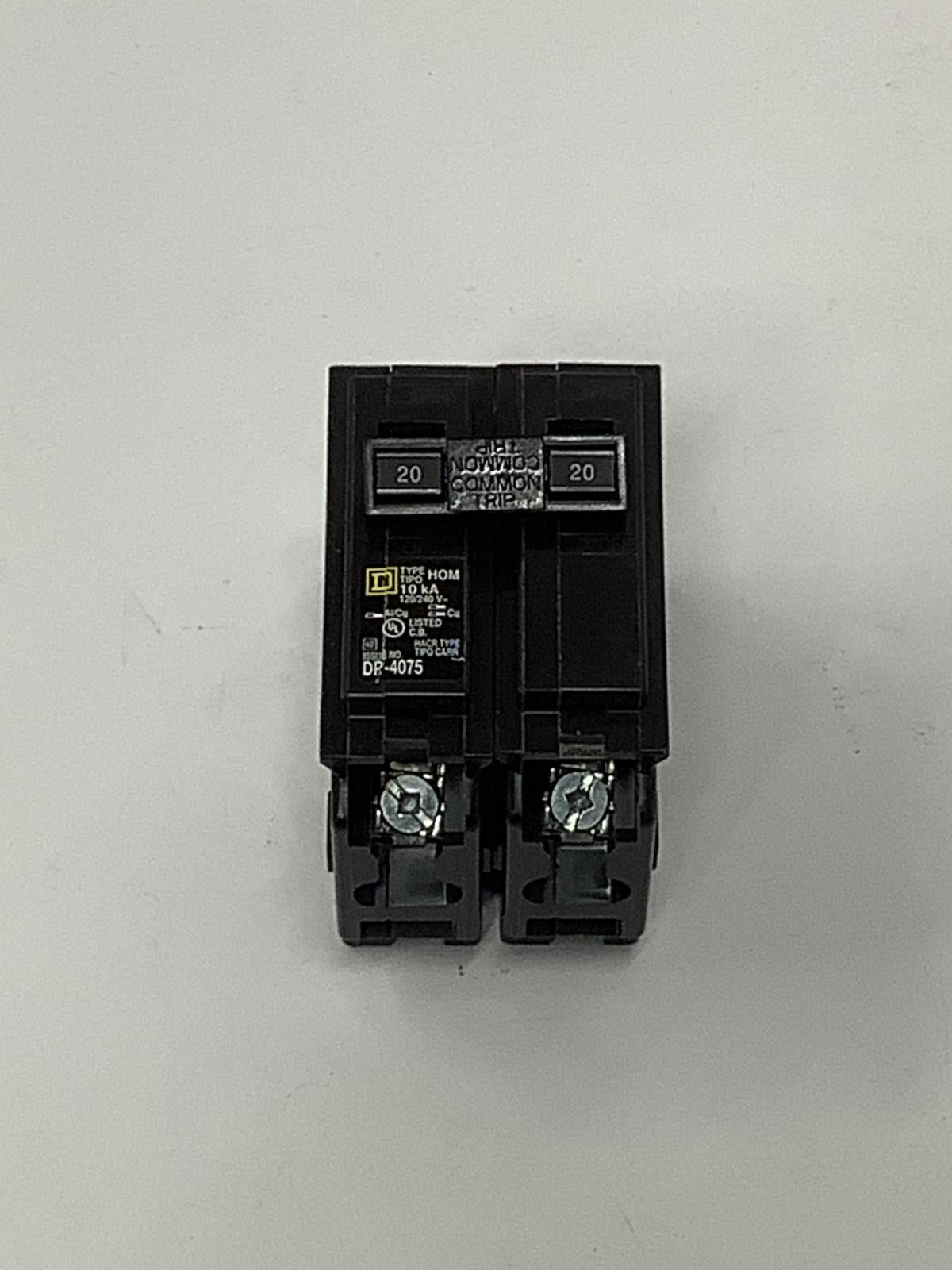

Square D Homeline 20-Amp 2-Pole Circuit Breaker 120/240V HOM220
Free UPS Shipping
$13.99
Condition: New Brown Box
Description
Engineered for modern residential electrical systems, this 20-amp two-pole component delivers standard thermal-magnetic protection. It handles common household loads like small air conditioners or baseboard heaters. The unit mounts securely into Square D Homeline load centers without requiring extra hardware. It accepts 14-8 AWG aluminum or copper wirin
Condition: New Brown Box
Description
Engineered for modern residential electrical systems, this 20-amp two-pole component delivers standard thermal-magnetic protection. It handles common household loads like small air conditioners or baseboard heaters. The unit mounts securely into Square D Homeline load centers without requiring extra hardware. It accepts 14-8 AWG aluminum or copper wiring via standard screw clamp terminals. With a 10kAIC rating at 120/240VAC, it meets standard residential fault requirements.Specifications
| Brand | Square D |
| Series | HOM |
| Part Number | HOM220 |
| Amperage | 20A |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Mounting Style | Plug-On |
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Available Options | Padlock Attachment, Handle Tie |
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
