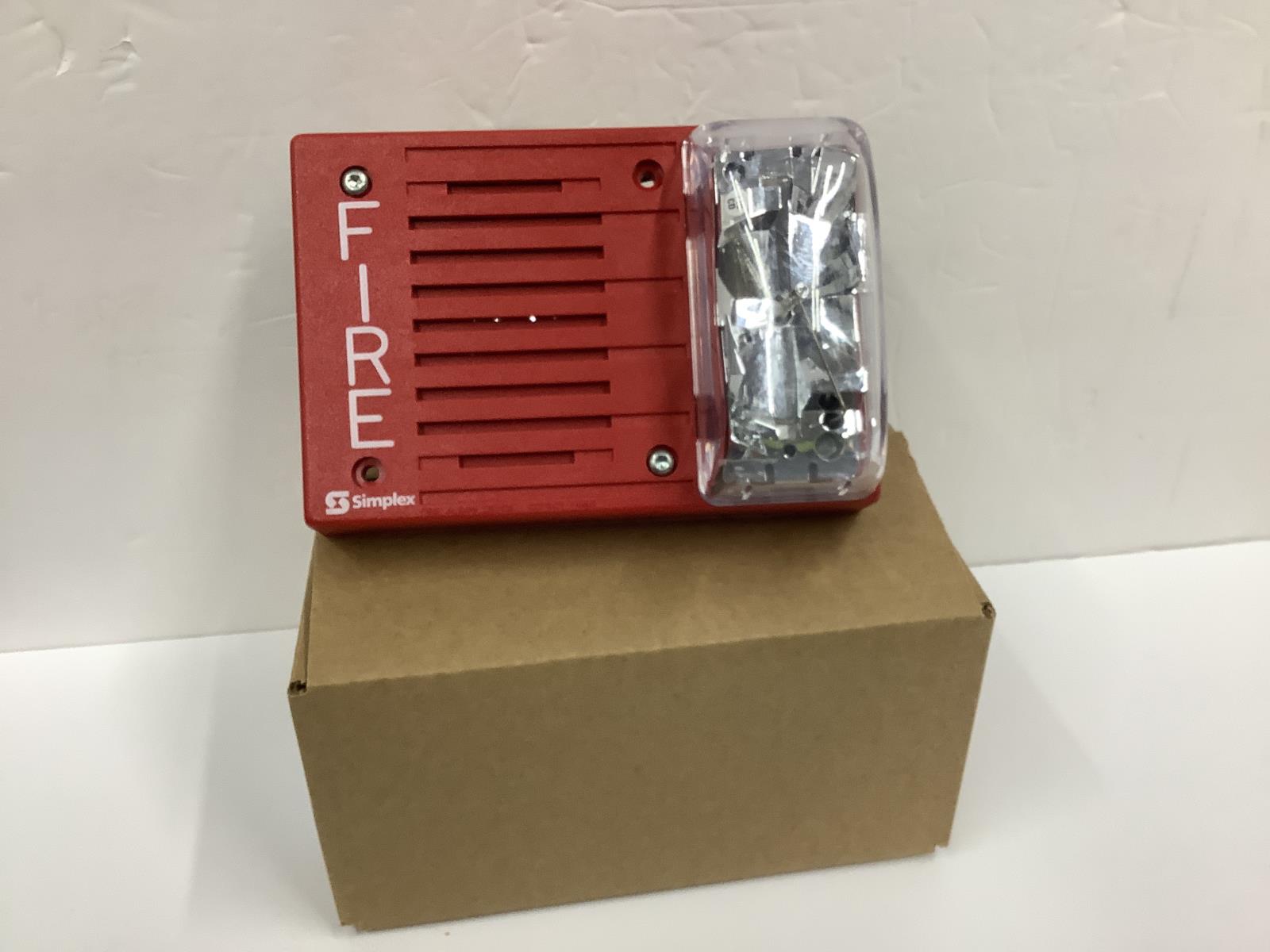

Simplex Horizontal Mount 110CD Horn Strobe – Red 0626862 4903-9254
$29.99
n: USED
Condition: USED
Simplex Horizontal Mount 110CD Horn Strobe – Red 0626862 4903-9254
The Simplex 4903-9254 is a horizontal wall mount, combination horn and strobe notification appliance delivering a 110 candela xenon strobe output and a harmonically rich 24 VDC electronic horn. The 4903-9254 operates on a regulated 24 VDC NAC (16–33 VDC range) and features switch-selectable free-run or synchronized strobe operation, making it compatible with Simplex SmartSync and 4005-9938-type synchronization modules. The horn and strobe can be wired to the same NAC or to separate circuits using on-board jumpers. This red, horizontal mount model directly replaces the legacy Simplex 4903-9217 and 4903-9238 110 CD horn strobes.
- 110 candela xenon strobe; UL listed to Standard 1971
- Electronic horn output: 84.8 dBA @ 33 VDC, 80.6 dBA @ 16 VDC; 2400–3700 Hz sweep at 120 Hz rate
- Rated voltage: 16–33 VDC (regulated 24 VDC); horn current: 13–16 mA
- Strobe current (110 cd): 285 mA @ 18 VDC, 190 mA @ 24 VDC (max RMS)
- Switch-selectable free-run or synchronized strobe operation
- Horn and strobe can be wired to same or separate NACs
- Red housing; horizontal wall mount
- Housing: 4-3/4″ × 6-7/8″ × 2-5/8″ D; depth into box 11/16″
- Terminals accept 18–12 AWG wire
- Operating range: 32°–120° F (0°–49° C)
- Part number 0626862; data sheet S4903-0005
