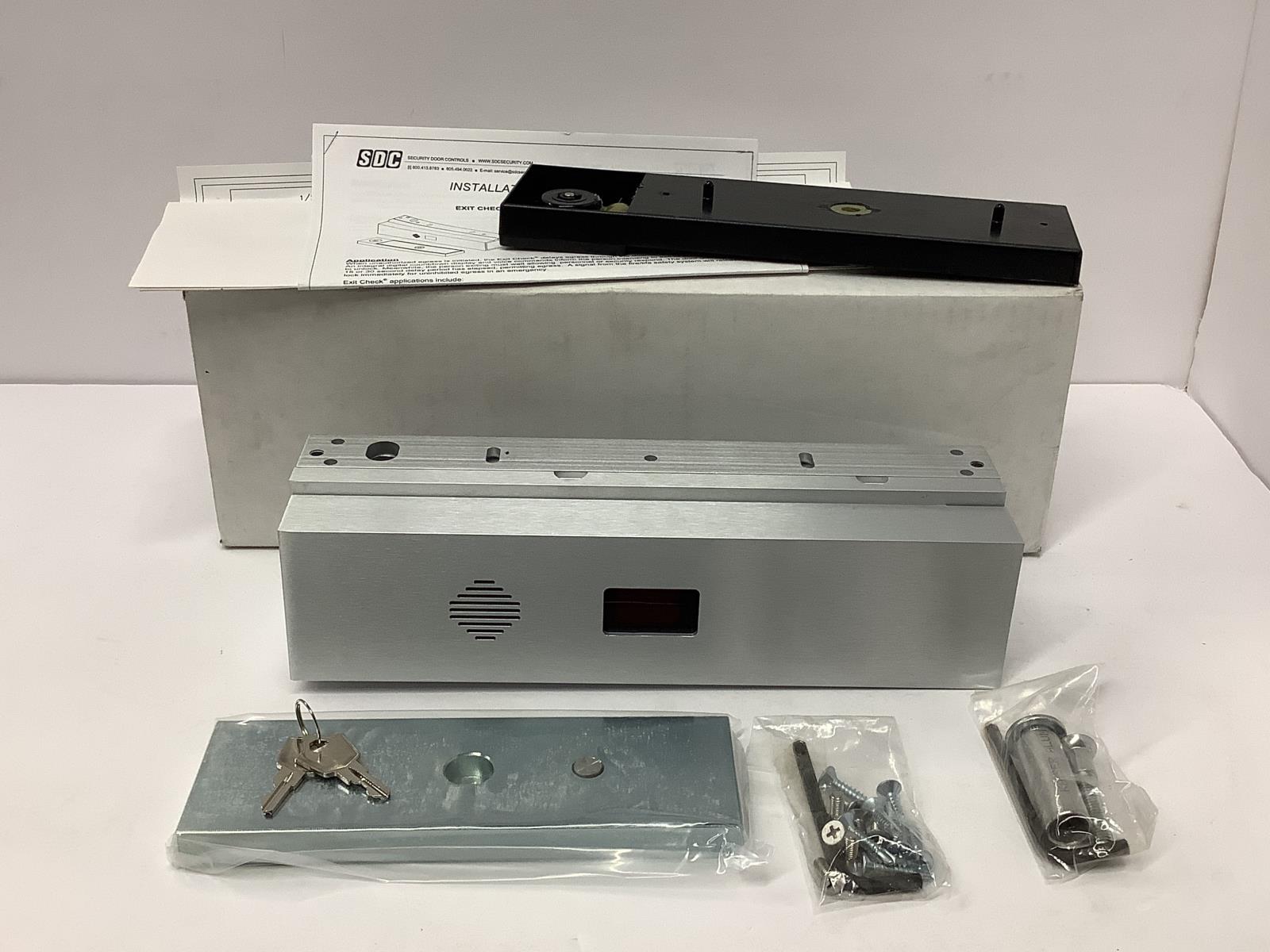

SDC Single ExitCheck Delayed Egress EMLock w/ Built in Key Switch 1511SNAKVD
$699.99
Condition: New Open Box
Manufacturer
Security Door Controls
Model
1511SNAKVD
Housing Dimensions
11" L x 2 3/4" H x 2 5/8" D (279 L x 70 H x 67 D mm)
Armature Plate Dimensions
7 3/8" L x 2 3/8" H x 9/16" D (187 L x 60 H x 14 D mm)
Door Type
Single Door
Voltage
Auto Sensing 12 to 24 VDC
Holding Force
1650 lbs. (748 kg)
Output Relays
Alarm Output:
Condition: New Open Box
| Manufacturer | Security Door Controls |
|---|---|
| Model | 1511SNAKVD |
| Housing Dimensions | 11" L x 2 3/4" H x 2 5/8" D (279 L x 70 H x 67 D mm) |
| Armature Plate Dimensions | 7 3/8" L x 2 3/8" H x 9/16" D (187 L x 60 H x 14 D mm) |
| Door Type | Single Door |
| Voltage | Auto Sensing 12 to 24 VDC |
| Holding Force | 1650 lbs. (748 kg) |
| Output Relays | Alarm Output: SPDT Dry, 1 Amp @ 30VDC Lock Secure / Unlocked Output: SPDT Dry, 1 Amp @ 30VDC DPS Door Position Status: SPDT Dry, 250 mA @ 30VDC |
| Adjustable Time Delay | 15 or 30 second exit delay |
| Mounting Type | Surface |
| Certifications | ANSI / BHMA Grade 1 Compliant |
| U.L. Listed | UL Listed |
| CA State Fire Marshal | CSFM Listed 3774-0324:103 |
| NYC MEA | MEA Listed |
