Panasonic 16-Channel H.264 Digital Disk Recorder DVR Security Unit WJ-HD616K

Panasonic 16-Channel H.264 Digital Disk Recorder DVR Security Unit WJ-HD616K

$129.99
Condition:  New Open Box - looks good, light scuffs, powers on, comes with power cord, accessories, and instructions  Panasonic WJHD616K Overview   The Panasonic 16-Channel H.264 Digital Disk Recorder, with UniPhier and H.264 codec, enables real-time high-quality recording (720 x 480) as well as high compression encoding simultaneously. With SD5Link (Super Dynamic 5 Link) and


-
+
$129.99

5 In Stock

posting

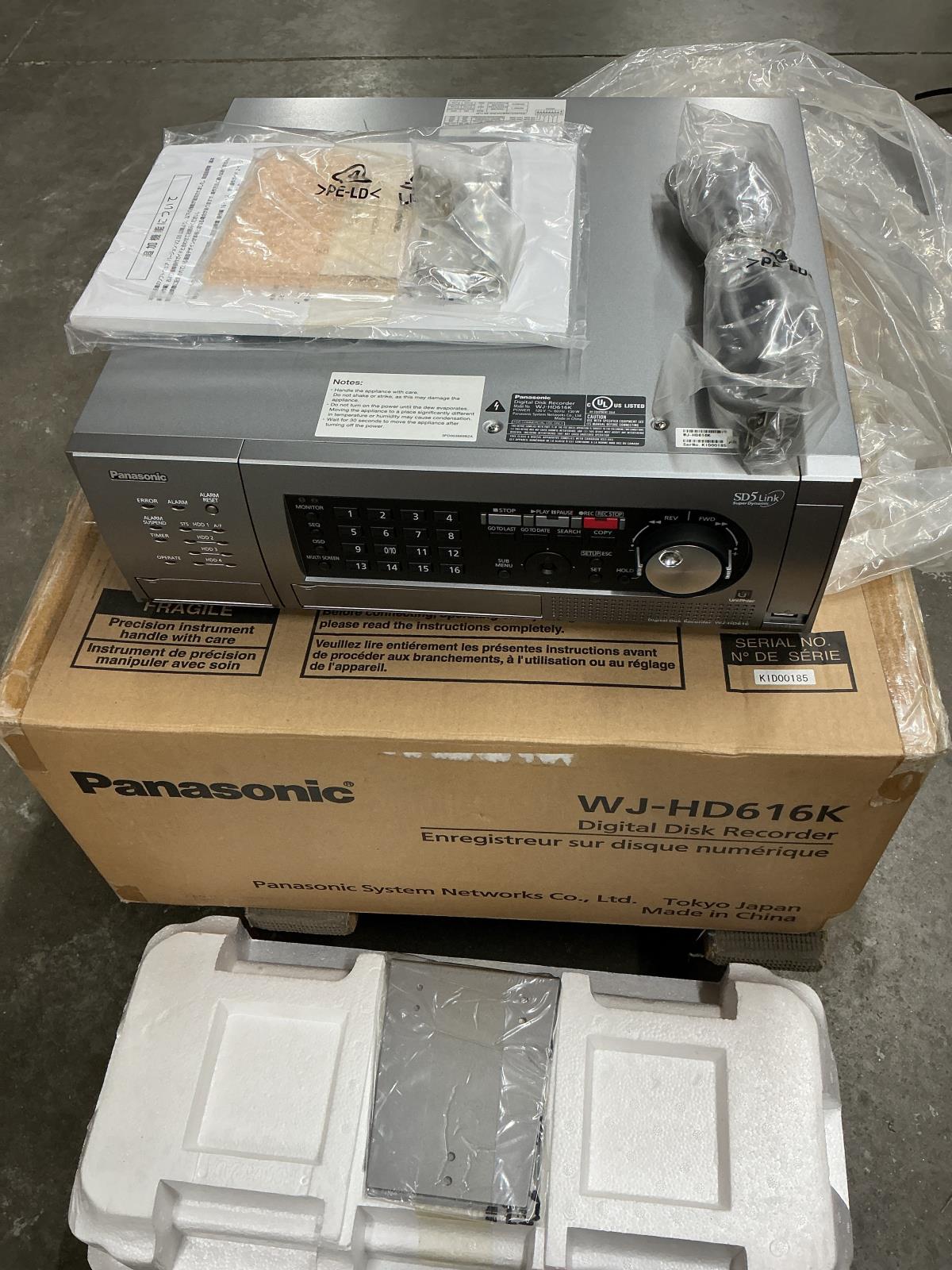

Condition:  New Open Box - looks good, light scuffs, powers on, comes with power cord, accessories, and instructions

Panasonic WJHD616K Overview



The Panasonic 16-Channel H.264 Digital Disk Recorder, with UniPhier and H.264 codec, enables real-time high-quality recording (720 x 480) as well as high compression encoding simultaneously. With SD5Link (Super Dynamic 5 Link) and i-VMD (intelligent-Video Motion Detection), the disk recorder provides an optimum surveillance solution for easy search and disk saving, and prevents loss of vital scenes as well.

The DVR features 16 video inputs out of which 8 can be used for coaxial PTZ control. The 16-channel Disk Recorder also allows you to display videos on 2 monitors via the HDMI ports at a resolution up to 1080i (1920 x 1080 pixels) per monitor. The 4 HDD slots at front panel provide easy maintenance without removing the recorder from the mount rack.

On-board slots are provided for SD/SDHC cards. Apart from being convenient for short-term/temporary storage, recording onto SD/SDHC cards also rules out data loss due to network disconnection. The 16-channel disk recorder supports RAID5/6 redundant recording with the optional WJ-HDB601 RAID Board and also allows you to connect up to 4 optional WV-CU650 system controllers by PS data. You can remotely monitor videos via Internet and WV-ASM100 i-Pro Management software that also allows you to search & play recording events and start/stop recording. The 16-channel H.264 Digital Disk Recorder enables up to 8 users to simultaneously connect to the unit via the network.

UniPhier and H.264 codec - enable real-time high-quality recording (720 x 480) and high-compression encoding simultaneously
SD5Link (Super Dynamic 5 Link) capability with i-VMD (intelligent-Video Motion Detection) alarm provides disk saving and easy search
Up to 5 DVRs can be cascaded for expansion and for controlling up to 80 cameras from a single DVR
16 analog video inputs including 8 Panasonic coax camera control inputs and 4 audio inputs
Display videos on 2 monitors via the HDMI ports at a resolution up to 1080i (1920 x 1080 pixels) per monitor
4 HDD slots at front panel provide easy maintenance without removing the recorder from the mount rack
On-board slots provided for SD/SDHC cards
Recording onto SD/SDHC cards rules out data loss due to network disconnection
Supports RAID5/6 redundant recording with the optional WJ-HDB601 RAID Board
Connect up to 4 optional WV-CU650 system controllers by PS data
Easy operation with GUI and USB mouse
DVD drive (optional) and SD/SDHC memory card slot for easy copy of recorded image data
Live/Playback monitor out (HDMI, BNC) and Live monitor out (HDMI, BNC)
Remote monitoring via Internet Explorer and WV-ASM100 i-Pro Management software
Set-up data can be downloaded and uploaded with a SD/SDHC memory card
Up to 8 users can connect simultaneously via the network





Panasonic WJHD616K Specs

Audio/Video IF
Signal System
NTSC
Video Inputs
16 x 1 Vpp / 75 ohms composite video inputs (BNC)
8 x multiplexed control data (1 to 8 channel)
Cascade IN: 2 x HDMI, 1 x BNC
Video Outputs
16 x 1 Vpp / 75 ohms composite video signal (BNC), active loop through outputs
Monitor outputs:
2 x HDMI, 2 x 1 Vpp / 75 ohms composite video signal (BNC)
Video Output (Front RCA):
1 x 1 Vpp / 75 ohms composite video signal
Audio Inputs
4 x -10 dBv, 10 kOhms (RCA) (1 to 4 channels)
Audio Outputs
Rear: 1 x -10 dBv, 600 ohms
Front: 1 x -10 dBv, 600 ohms
Audio / Video Format
Recording
H.264 (High profile)
Frame (720 x 480 pixels)
Field (720 x 240 pixels)
Network
H.264 (High profile)
QVGA (320 x 240 pixels): Recording independent
Field/Frame: Recording dependent
Frame Rate
Recording: 240 ips @ field, 120 ips @ frame
Main Unit
Camera Control
Pan/tilt, zoom, focus, iris, preset position call (up to 256), auto mode
Multi-Screen Display
4 / 7 / 8 / 9 / 12 / 16 split screen display
Copy
DVD ±R, SD/SDHC
Browser GUI
Supported Browsers
Windows Internet Explorer 7.0 (Microsoft Windows Vista Business 32-bit), Microsoft Internet Explorer 6.0 SP2 (Microsoft Windows XP Home/Professional SP2)
Network
Network Interface
1 x 10Base-T / 100Base-TX (RJ-45)
Maintenance
Interface: 1 x 10Base-T / 100Base-TX (RJ-45)
Number of Simultaneous Users
8
User Registration
Up to 32 users
Alarm and Event
Alarm Source
16 x terminal inputs, 16 x camera alarm, PS-data
External IF
Alarm
16 x Alarm inputs (25 pin D-sub, make contact, N.O/N.C)
16 x Alarm outputs (25 pin D-sub, open collector, N.O/N.C)
1 x Alarm reset input
1 x Alarm suspend input
External Storage
3 x high speed serial interface (only for WJ-HDE400 extension unit)
Recording
Emergency recording input, external recording mode input
Time
Adjustment: Input/output
Controls
Sequence switching signal input
Power outage detection output
Shut down ready output
RS-485
PS-Data Controller:
2 x RS-485 (RJ-11) PS-Data compatible for control from WV-CU650 or matrix switcher WJ-SX650

RS-485 Camera Interface:
2 x RS-485 (RJ-11), 2/4-wire, half duplex, for 1 to 16 channel
Mouse
1 x USB mouse port (front)
Card Slot
1 x SD/SDHC memory card slot (front)
HDD
Type
3.5" serial ATA HDD, up to 4 HDDs can be installed
Maximum HDDs
31 HDDs (with 3 x WJ-HDE400 extension units, each with 9 x HDD slots)
RAID
RAID5/RAID6 supported (with WJ-HDB601)
General
Safety/EMC Standard
UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA)
Power Source
120 VAC, 60 Hz
Power Consumption
130 W
Ambient Operating Temperature
41 to 113°F (5 to 45°C)
Ambient Operating Humidity
Less than 85 % (non-condensing)
Dimensions
16.9 x 5.2 x 15.8" (43.0 x 13.2 x 40.0 cm) excluding rubber feet and projections
Weight
Approximately 30.8 lb (14 kg) without HDD and 37.4 lb (17 kg) with 4 HDDs
