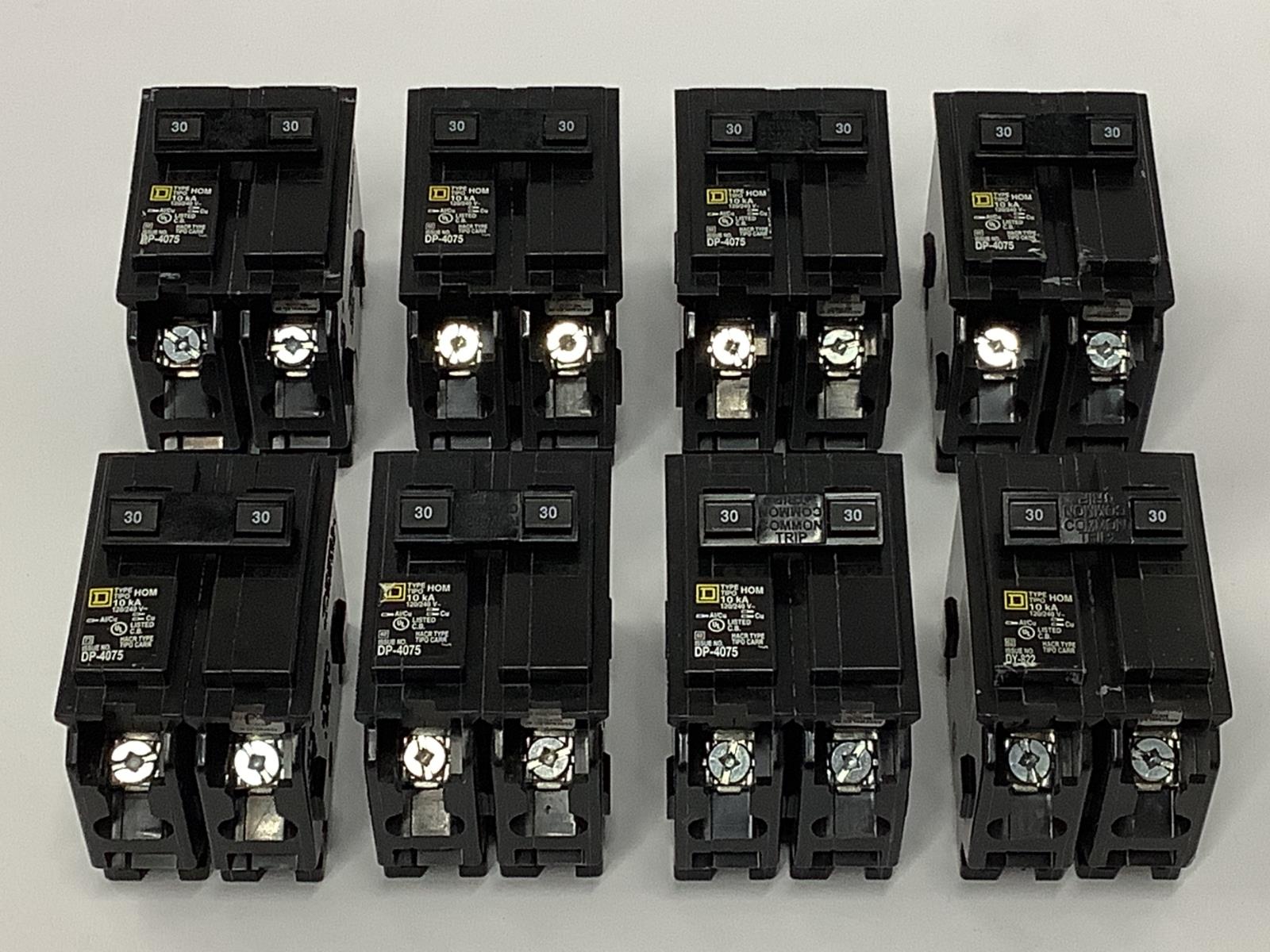

Lot 8 Square D Homeline 30-Amp 2-Pole Standard Circuit Breaker 120/240V HOM230
Free UPS Shipping
$89.99
Condition: New Brown Box - Lot of 8
Description
Serving as a critical safety component, the 30A HOM230 protects heavy-duty residential appliances like electric dryers. This two-pole device operates on 120/240VAC systems. It integrates seamlessly into Square D Homeline load centers via a standard plug-on connection. Contractors also deploy this unit as a substitute for Eaton CL230 breakers.
Condition: New Brown Box - Lot of 8
Description
Serving as a critical safety component, the 30A HOM230 protects heavy-duty residential appliances like electric dryers. This two-pole device operates on 120/240VAC systems. It integrates seamlessly into Square D Homeline load centers via a standard plug-on connection. Contractors also deploy this unit as a substitute for Eaton CL230 breakers. Rated for 10kA short-circuit current, it provides robust defense against faults. The HACR designation confirms its suitability for HVAC circuits.Specifications
| Brand | Square D |
| Series | HOM |
| Part Number | HOM230 |
| Amperage | 30A |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Mounting Style | Plug-On |
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Wire Gauge | 14-8 AWG (Al/Cu), 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Available Options | Padlock Attachment, Handle Tie |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
