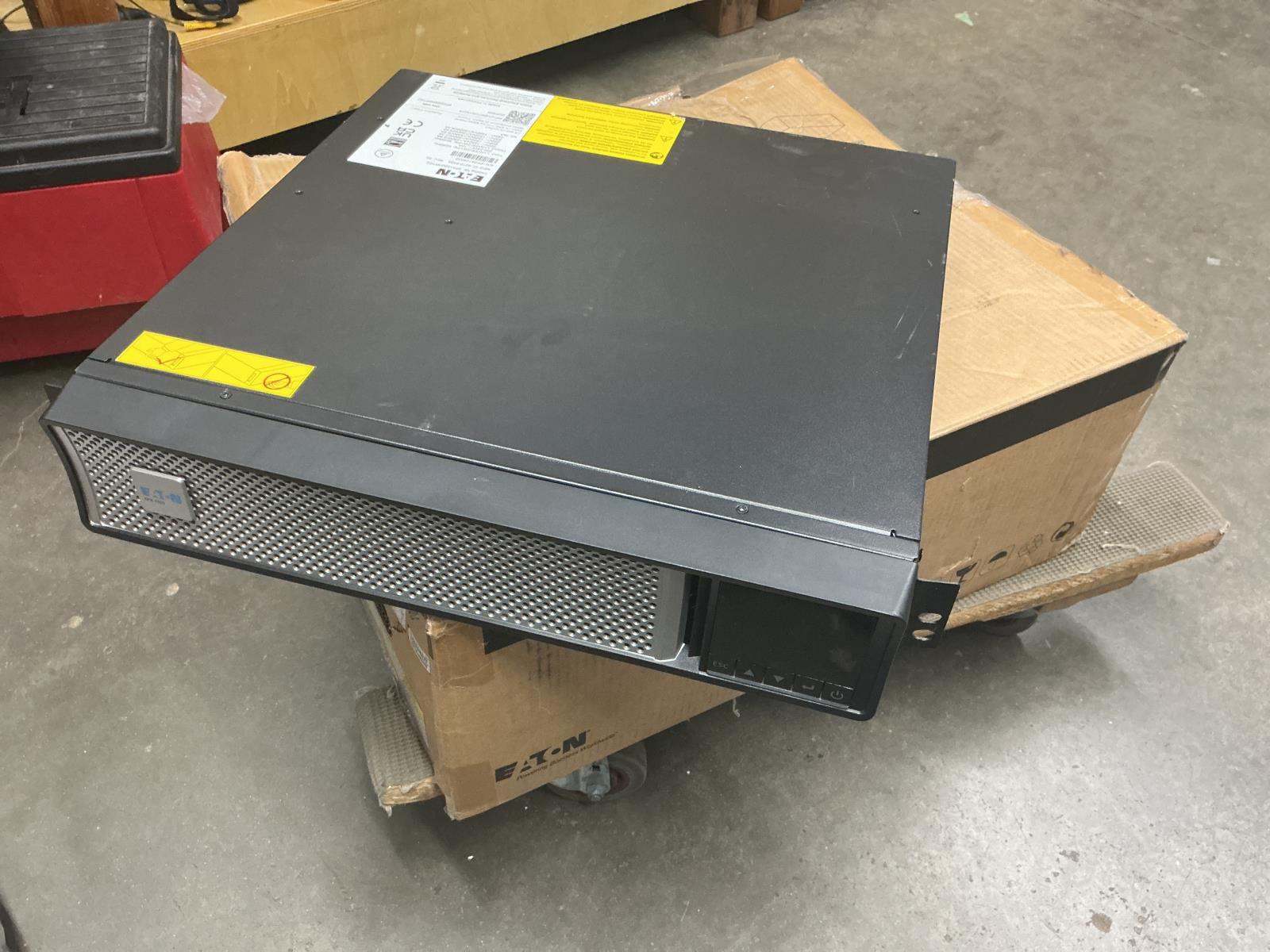

Condition: Used - unit only. Some scratches on top
Eaton 5PX1500HRTG2 Eaton 5PX G2 UPS, 2U, 1500 VA, 1500 W, C14 input, Outputs: (8) C13, 208V General specifications PRODUCT NAME Eaton 5PX G2 UPS CATALOG NUMBER 5PX1500HRTG2 UPC 743172105806 PRODUCT LENGTH/DEPTH 17.6 in PRODUCT HEIGHT 3.4 in PRODUCT WIDTH 17.2 in PRODUCT WEIGHT 49.4 lb COMPLIANCES CE Marked REACH CERTIFICATIONS cULus RoHS ENERGY STAR certified IEC 62040-1 GLOBAL CATALOG 5PX1500HRTG2 PRODUCT TYPE UPS
