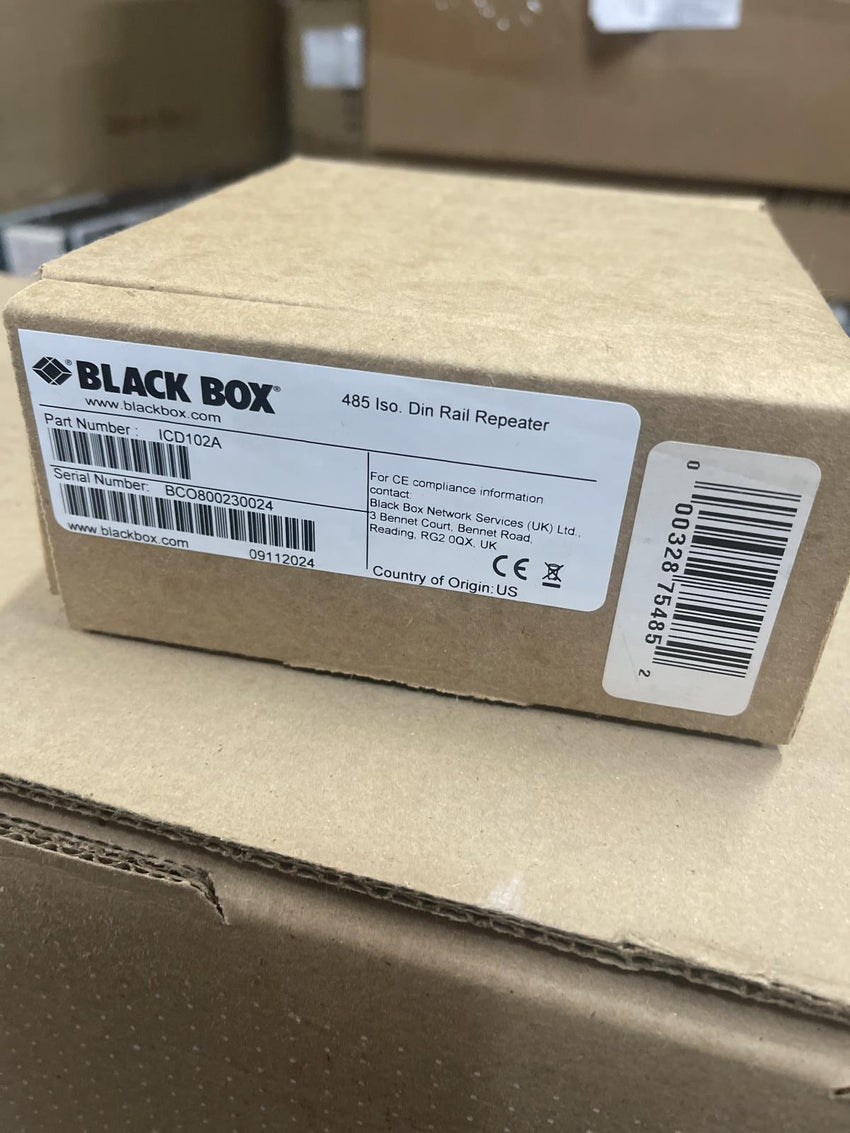

Black Box 485 ISO Din Rail Repeater DIN RAIL REPEATERS WITH OPTO-I ICD102A

Black Box 485 ISO Din Rail Repeater DIN RAIL REPEATERS WITH OPTO-I ICD102A

FREE UPS Shipping

$49.99
Condition: New Factory Sealed Black Box ICD102A Specifications   DIN Rail Repeaters with Opto-Isolation,


-
+
$49.99

37 In Stock

posting

Condition: New Factory Sealed

Black Box ICD102A Specifications


DIN Rail Repeaters with Opto-Isolation,

    Overview



    Quick Facts

    • Act as repeaters, isolators, and extenders.
    • The RS-422/RS-485 model isolates RS-422/485 equipment, features selectable rates between 2400 bps and 115.2 kbps, and enables a system to exceed 32-node limitations.
    • The RS-232 model isolates the TD, RD, RTS, and CTS channels, supports 115.2-kbps speeds on all four channels, and extends the RS-232 signal beyond 50 feet (15.2 m).



      Miscellaneous





      • Indicators - ICD102A: (2) LEDs: Data flow direction
      • Isolation - ICD102A: 2000 VRMS for 1 minute of optical isolation of data lines;ICD103A: 2000 VDC for 1 minute
      • Operating Environment - Temperature: -40 to +176° F (-40 to +80° C);Humidity: Up to 95% noncondensing
      • Operation - ICD102A: RS-485: 2-wire half-duplex or 4-wire full-duplex; RS-422: Full-duplex;
      • ICD103A: RS-232: Half- or full-duplex
      • Speed - ICD102A: 2400 bps to 115.2 kbps, switch-selectable; other rates available up to 460.8 kbps;ICD103A: Up to 115.2 kbps
      • Surge Suppression - ICD102A: Bidirectional overvoltage suppressor: 6.5 V; Peak power dissipation: 600 W; Capacitance (maximum): 3000 pF



        Specifications


        General Information
        Product Name DIN Rail Repeaters with Opto-Isolation,
        Manufacturer Part Number ICD102A
        Product Type Signal Repeater
        Physical Characteristics
        Height 0.9"
        Width 2.9"
        Depth 3.9"
