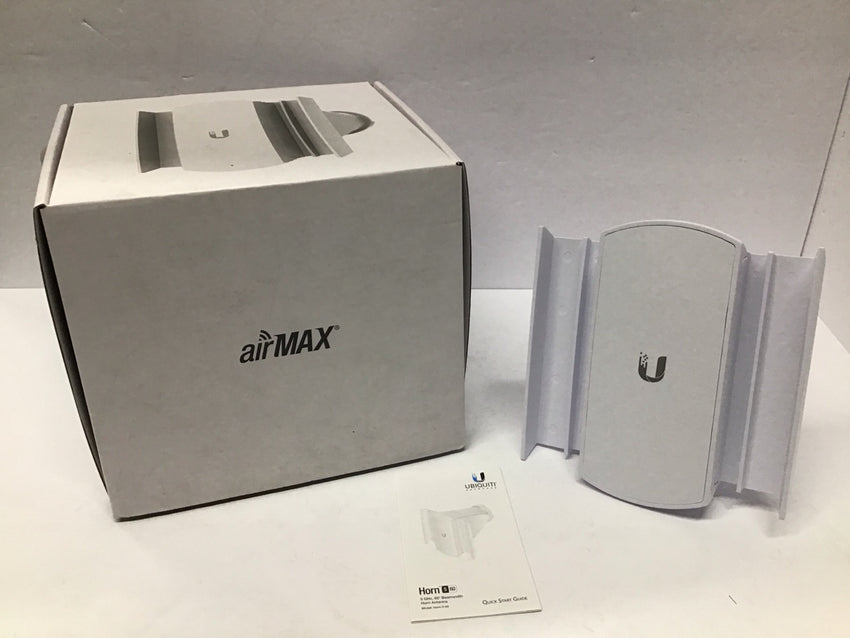

Ubiquiti Horn 5 60 Antenna HORN-5-60

Ubiquiti Horn 5 60 Antenna HORN-5-60

FREE UPS Shipping

$59.99
Condition: New Open Box Ubiquiti Networks HORN-5-60 Specifications   Horn, 5GHZ, 60 deg


-
+
$59.99

2 In Stock

posting

Condition: New Open Box

Ubiquiti Networks HORN-5-60 Specifications


Horn, 5GHZ, 60 deg

    At a Glance




    • Isolation Antenna Horns for airFiber® LTU and airMAX®
    • Designed for Increased Co-Location Performance
    • Dual-Linear Polarization

      Overview




      With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX®radios, these antennas deliver superb co-location performance without sacrificing gain.


      Models: Horn-5-30, Horn-5-45, Horn-5-60, Horn-5-90

      Modular Design

      The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

      Symmetrical horn antenna

      30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

      Asymmetrical horn antennas

      60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

        Compatibility






        • Ubiquiti Networks PrismStation 5AC
        • Ubiquiti Networks airFiber LTU Radio






          Specifications


          General Information
          Product Name Horn, 5GHZ, 60 deg
          Product Line Horn 5
          Product Model Horn-5-60
          Product Type Antenna
          Technical Information
          Operating Frequency Range 5.15 GHz to 5.85 GHz
          Antenna Gain (Isotropic) 16 dBi
          Physical Characteristics
          Height 6.40"
          Width 6.82"
          Depth 6.73"
          Miscellaneous
          Application / Usage Base Station
          Other Information
          Product Family Horn 5
          Stock Details
          Manufacturer Ubiquiti Networks
          Manuf Part# HORN-5-60
